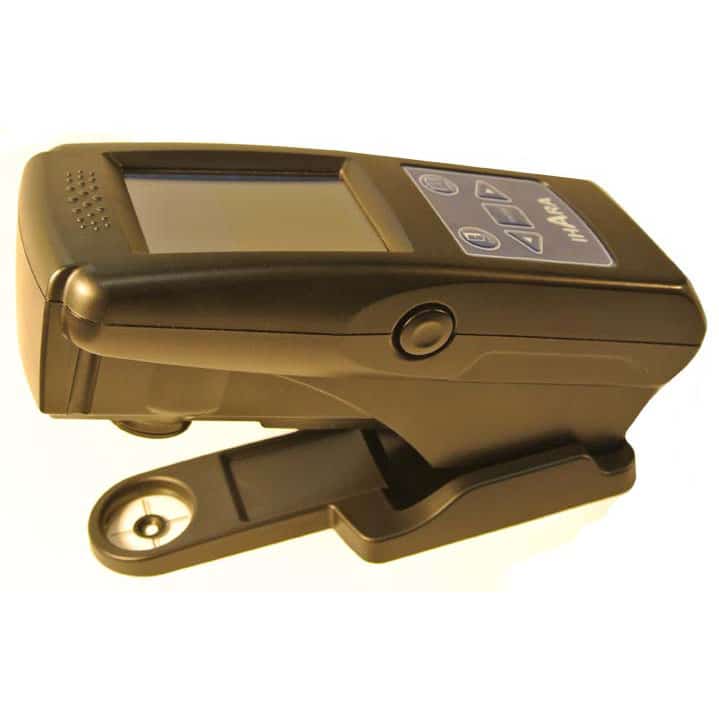

Name: Ihara R800 Spectrodensitometer
Brand: IHARA
SKU: R800
Availability: InStock

The high performance R800 spectrodensitometer utilizes the most innovative technology available to exacting standards. The R800 offers unparelleled performance, superb accuracy, repeatability, and inter-instrument agreement at an affordable price.

Measurement Functions
Lab*, XYZ, CMYK, Pass/Fail Function, ΔLab*, Δ XYZ, and ΔCMYK.

Densitometer Functions
Density, Density Difference, Dot Area, Dot Gain, and Ink Trap.

Filter Response
ISO:STATUS-T, E, A, I DIN: Wide, Narrow

M Factor (ISO-13655)
M0, M1, M2

Related Standards
JIS Z 8722, ISO 7724, DIN 5033･5036･6174, ASTM D 2244･E 308･E 1164, JIS K 7654, ISO 5/4, ANSI PH 2.17, DIN 16536

Accessories

CD Manuals
Calibration Boards
Zero Cap
AC Adapter
USB Cable
Carrying Case

Model		R800( Spectro Densitometer)	S300 （Spectrophotometer）
Model
Dimensions/Weight		204mm(L)×80mm(D)×80mm(H) Approx.650g（included Battery）
Dimensions/Weight
Illumination/Viewing system		45ﾟ/0°
Related standard		JIS Z 8722、ISO 7724、DIN 5033･5036･6174、ASTM D 2244･E 308･E 1164、JIS K 7654、ISO 5/4、ANSI PH 2.17、DIN 16536
Light source		LED(White ,Blue、UV)
Spectral separation device		transmissive grating
Wavelength range		400-700nm
Wavelength pitch		5nm
Measurement area		φ3mm	φ10mm、φ3mm
M factor （ISO-13655)		M0, M1、M2	M0, M1、M2
Illuminant (JIS_Z8720)		A､C､D50､D65	A､C､D50､D65､F2､F6､F7､F8､F10､F11､F12
Observers		2ﾟ、10ﾟ
Filter response		Status T､E､A､I､DIN（Wide, Narrow）
Measurement range			0-200%
Measurement time		Approx. 1sec
Short-term repeatability		Colorimetric: Within σΔE* 0.05 (When white plate is measured 20 times after white calibration has been performed)
Inter-instrument agreement		Within ΔE* 0.3 (Average of 12 BCRA Series II color tiles compared to values measured with a master body under Ihara standard conditions)
Stability		Within　ΔE* 0.25 (Maximum when white plane is measured 60 times at 60 second intervals the 1st time be a standard value)
	Spectro data		○
Color-	XYZ	○	○
Formulas	Yxy		○
	Lab*	○	○
	Lch*		○
	Hunter Lab		○
	Luv*		○
	WI(CIE,Tw,E313)		○
	W(ab,Hunter)		○
	WB		○
	YI		○
	H V/C		○
	MI		○
	Lab* graph		○
	CMYK	○	○
Pass / Fail	PASS / FAIL	○	○
Color-	⊿XYZ	○	○
Difference	⊿Yxy		○
Formulas	⊿Lab*	○	○
	⊿Lch*		○
	⊿Hunter Lab		○
	⊿Luv*		○
	⊿WI(CIE,Tw,E313)		○
	⊿W(ab, Hunter)		○
	⊿WB		○
	⊿YI		○
	⊿E*ab		○
	⊿E*cmc		○
	⊿E*94		○
	⊿E*uv		○
	⊿E hunter		○
	⊿EFMC-2		○
	⊿E00		○
	⊿CMYK	○	○
